Blanking a distributed pyTree.
This tutorial demonstrates how to blank a distributed tree, that is a pyTree with zones distributed on different processors.
The first script is only used to setup the case.
Second script performs blanking.
It is executed on each processor and must be launched with
mpirun -np 10 python blank.py.
It loads walls.cgns on every processors. This file contains the definition
of bodies.
Then it loads only the skeleton
of the pyTree to be blanked. A distribution is performed
to determine which zone must be loaded on each processor.
Since blanking doesn't require any communications
once the walls are defined, useCom=0 and fast algorithm are chosen.
Then, only certain zones are loaded on processor according to the
distribution using C.readZones. Skeleton tree is then converted to
a partial tree, that is a tree where only loaded zones are defined.

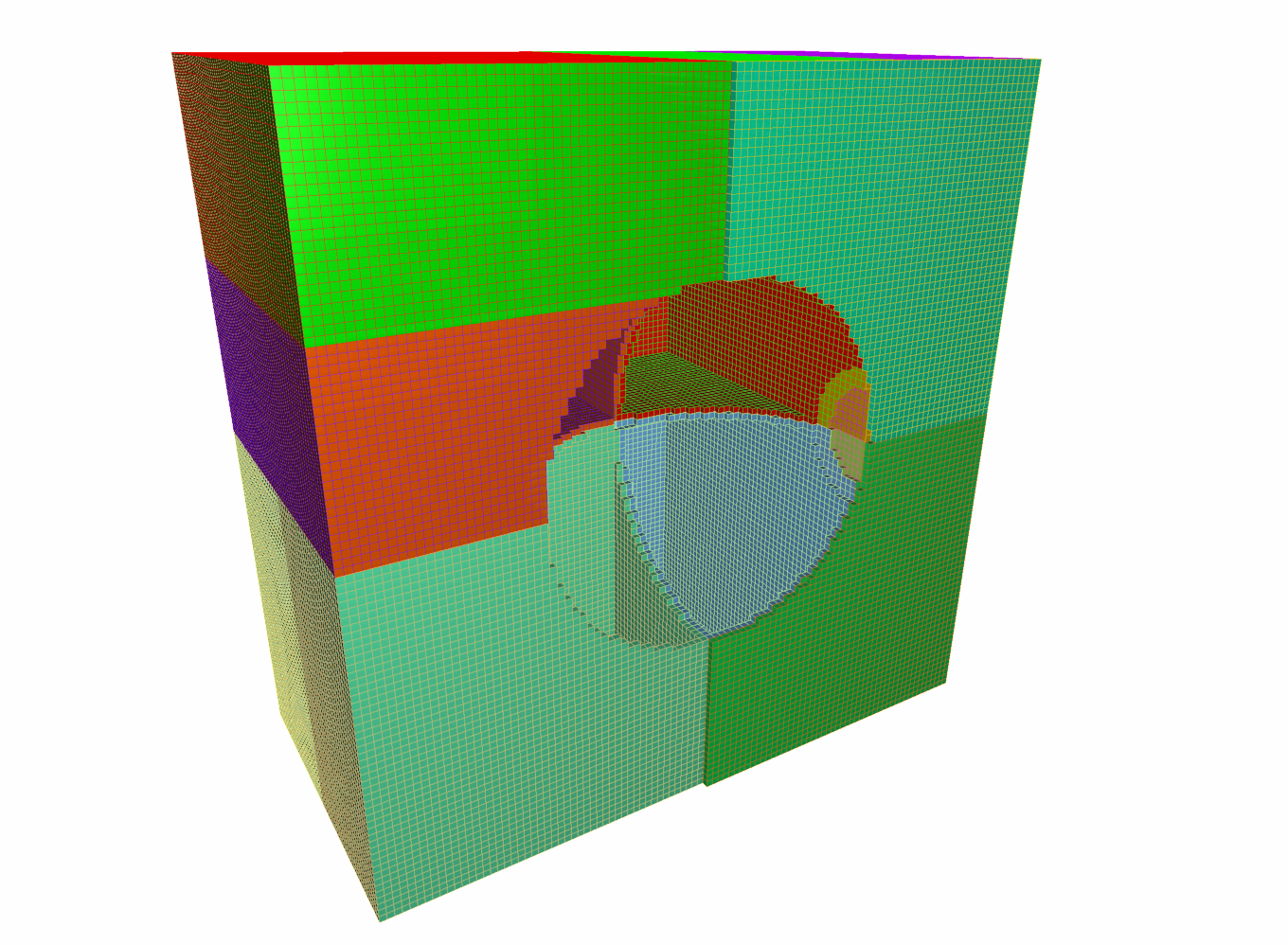

Blanking is performed on local zones.
Finally, each processor write its zones to a common file using
Cmpi.convertPyTree2File.
[Download case script].
[Download python script].
