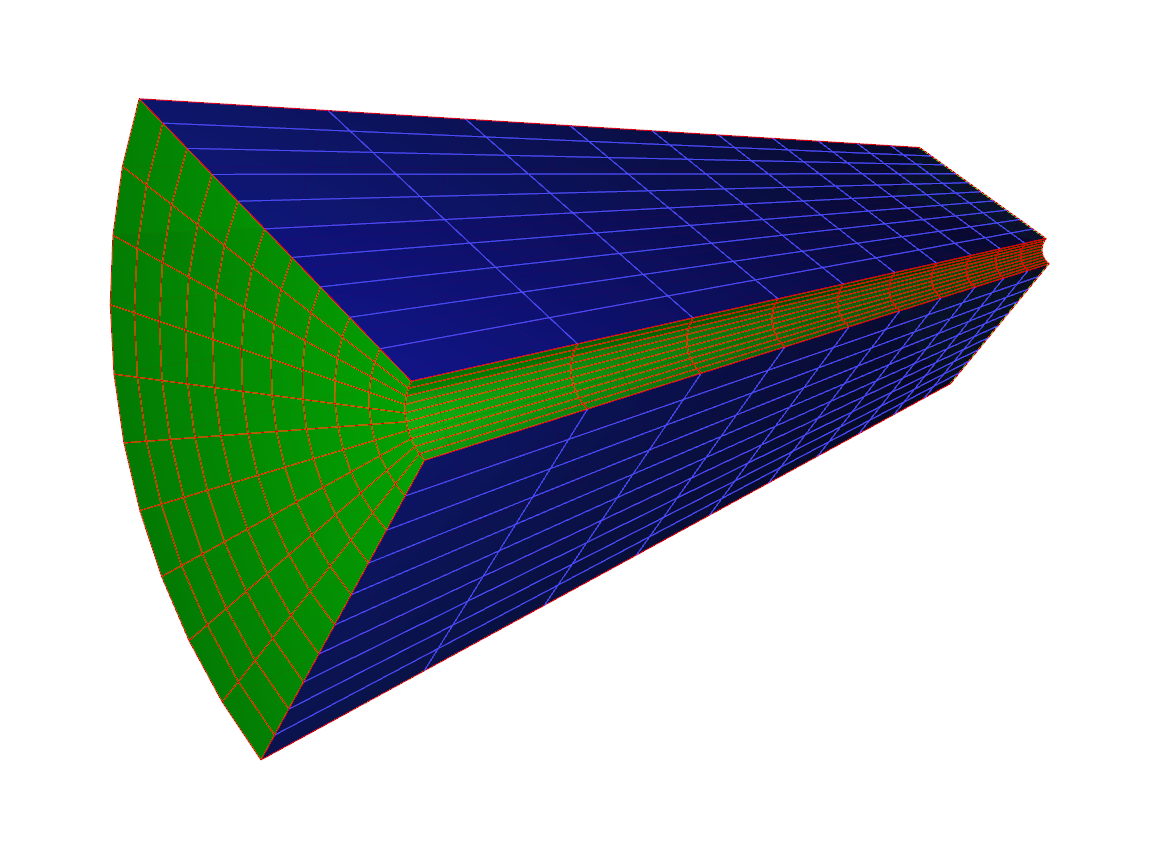

Periodic match connectivity (in blue) of a quarter of cylinder.
This tutorial demonstrates how to compute the periodic match connectivity in the case of an azimuthal periodicity.
Suppose you have a periodic mesh in azimuth and want to compute
the periodic match connectivity.
The idea is to duplicate the meshes by rotation and then perform
a X.connectMatch
on the full mesh. Since zone names in the duplicated mesh
are the same as in original mesh, this will result in a correct
connectivity. Then, we perform the same thing for the other direction.
[Download python script].
