Distance field for a distributed pyTree.

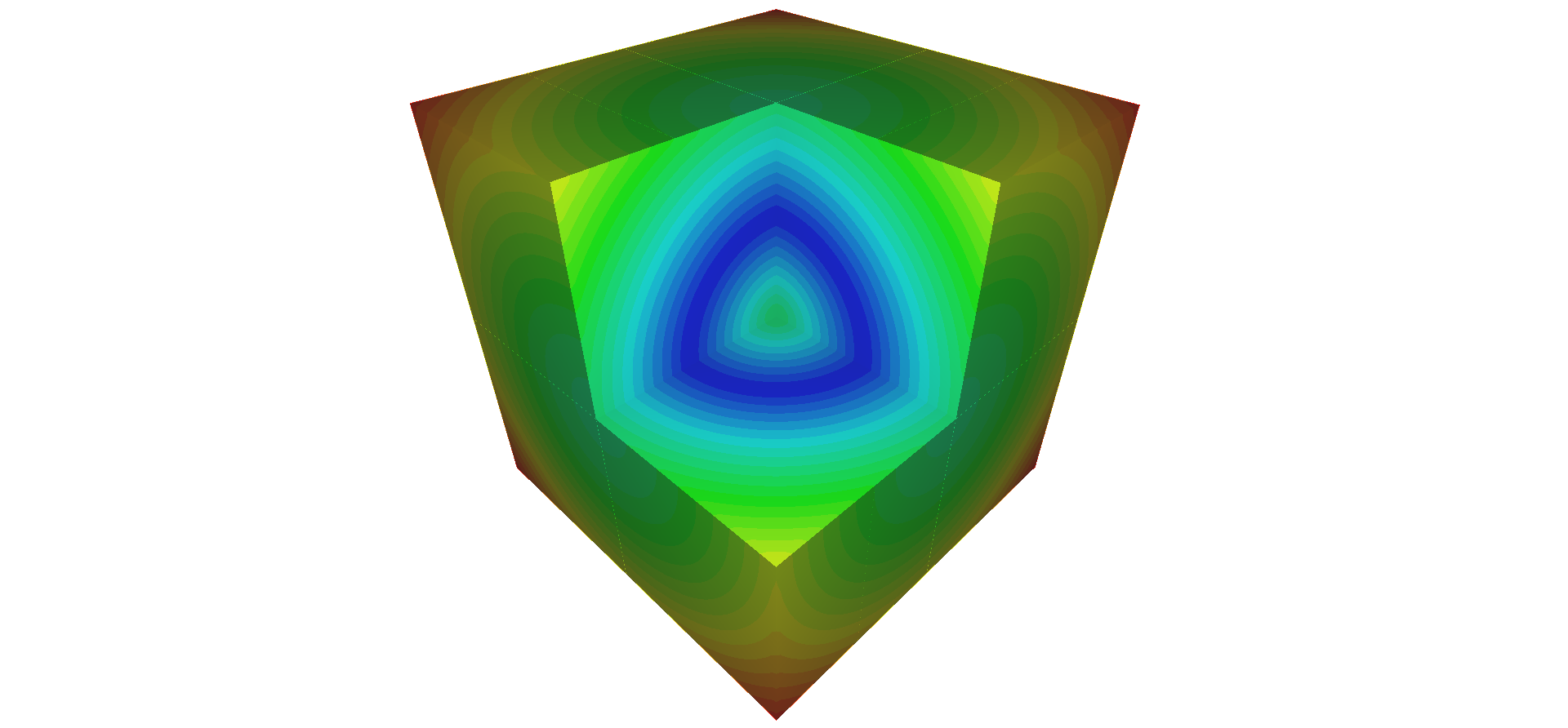

This tutorial demonstrates how to compute the distance to walls for a
distributed pyTree. A distributed pyTree means that zones are
distributed on different processors.
The first script is only used to setup the case.
Second script performs the computation of wall distance.
It is executed on each processor and must be launched with
mpirun -np 10 python dist2Walls.py.
It loads walls.cgns on every processors, then it loads only the skeleton
of the pyTree to be computed. Then a distribution is performed
to determine which zone must be loaded on each processor.
Since wall distance computation doesn't require any communications
once the walls are defined, useCom=0 and fast algorithm are chosen.
Then, only certain zones are loaded on processor according to the
distribution using C.readZones. Skeleton tree is then converted to
a partial tree, that is a tree where only loaded zones are defined.
Dist2Walls are computed on local zones.
Finally, each processor write its zones to a common file using
Cmpi.convertPyTree2File.
[Download case script].
[Download python script].
