Half cylinder.

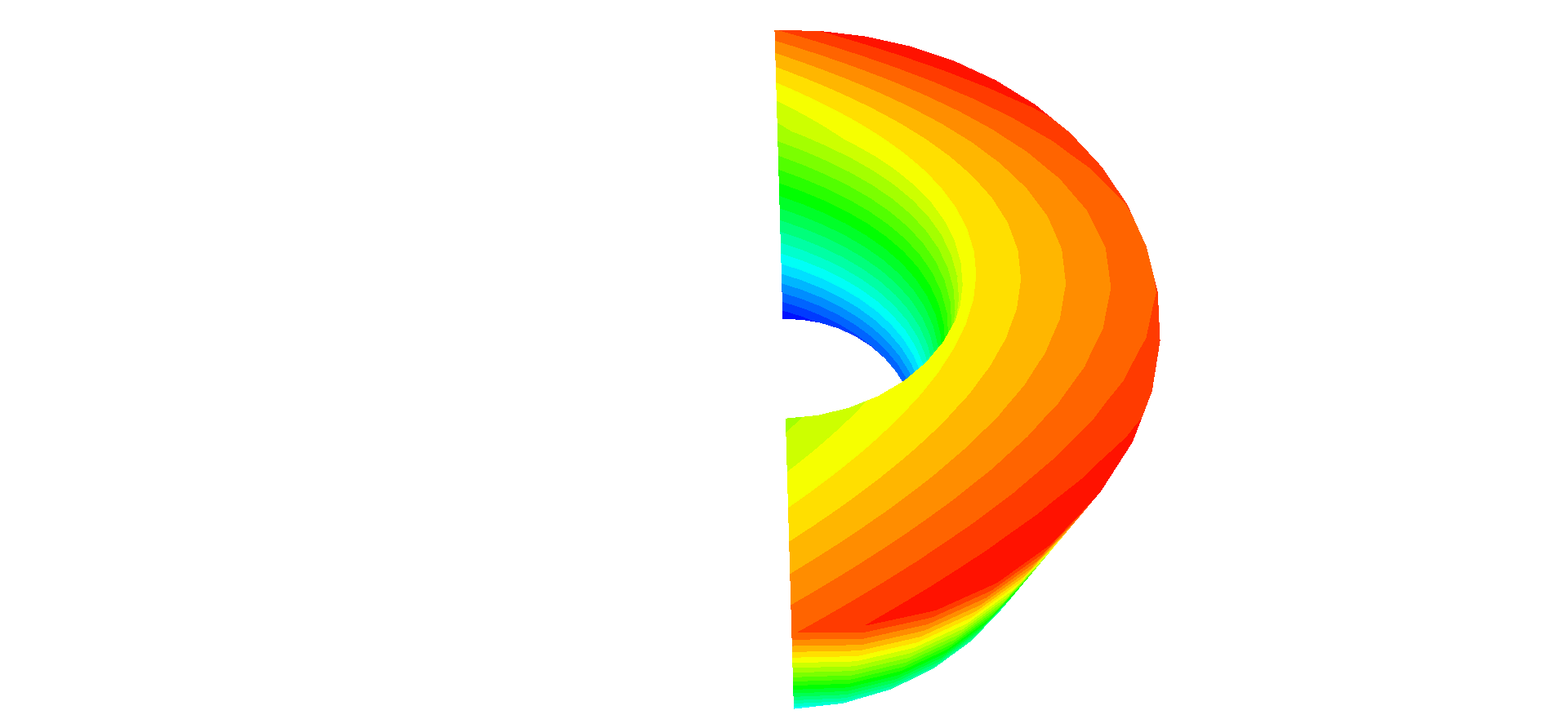

Symmetrize half a cylinder case with respect to y=0 plane.
This tutorial demonstrates how to get a full configuration case from a symmetric case with respect to a plane, keeping solution, boundary conditions and connectivity.
|
Half cylinder. |
Symmetrize half a cylinder case with respect to y=0 plane. |
To get a full configuration from a symmetric case according to a plane
x=a (resp. y=a, z=a),
we first symmetrize the mesh using the function
T.symetrize.
The generated blocks are generally ordered in an indirect way.
To get this right, we use
T.reorder.
Finally, the BCSymmetryPlane boundary condition is removed
and replaced by match boundary conditions using
X.connectMatch.

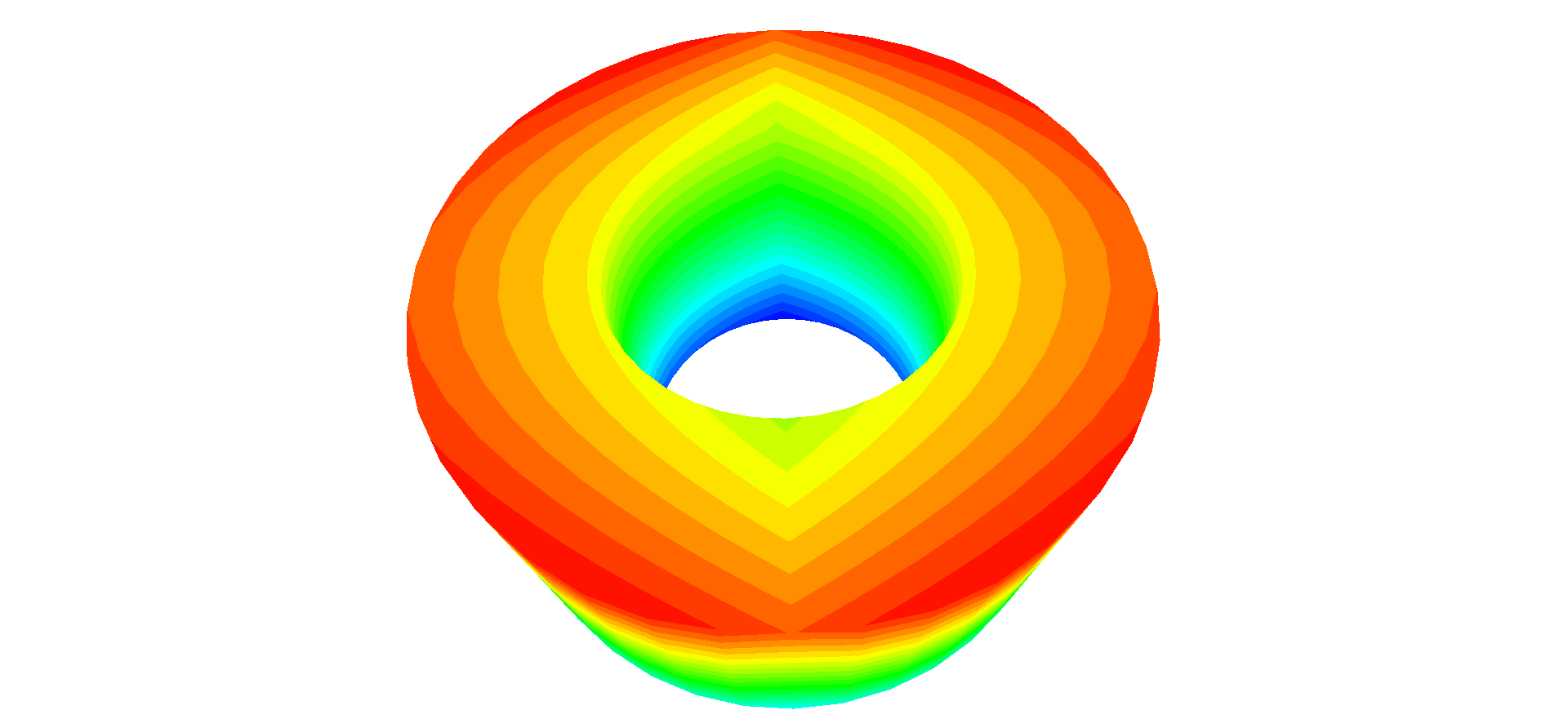

As a result, a full configuration with
solution and correct boundary conditions is obtained.
