Global Indexer

The global indexer is a protocol object allowing to access distributed data in read or write mode.

It has been inspired by the BlockToPart and PartToBlock protocols implemented in ParaDiGM library, and influenced by some conventions used in numpy and mpi4py packages.

Purpose

Since the global indexer can be seen as an extension of numpy take and put functions, let’s start by recalling what these functions do.

Considering a one-dimensional data array arr of size \(n\), a list of indices ind of size \(p\) (where each index i satisfies \(0 \le i \lt n\)), and a list of values val of size \(p\) :

  • numpy.take(arr, ind) loops over each index i of ind, extracts the value arr[i] and returns a new array of size \(p\). Note that this is also the operation performed by out = arr[ind];

  • numpy.put(arr, ind, val) loops over each index/value pair i,v, and writes the value v at the position i in arr. Note that this is also the operation performed by arr[ind] = val.

The aim of the global indexer is to offer similar functionnalities on distributed data, in a parallel context.

Distributed data is the term used to describe a collection (in general a data array) that is dispatched across several MPI processes. The way the global data is dispatched must fulfill some rules described in the introduction, but the main idea is that each MPI process gets a section of the collection, function of its rank in the MPI communicator:

../../_images/dist_array.png

To access data, each MPI process comes with a sequence of indices. Each index i is provided using global indexing, ie. the (virtual) numerotation of the global collection. In other words, as in the numpy analogy, each index i must satisfy the relation \(0 \le i \lt n\) where \(n\) is the global size of the distributed collection; it is the role of the global indexer to access data physically hold by other processes. Note also that the number of indices may be different on each process:

../../_images/dist_access.png

Now, let’s give a glance on what the global collection can actually represent; different kind of data are supported, and we provide a different put/take implementation for each of them. Here following mpi4py conventions, the supported data kind are:

  • Generic Python objects: the global collection is a list of size \(n\), and each of its items is an ordinary Python object:

    #    0     1     2        3                      4   # Global Index
d = [3.14, None, 'chars', ['even', 'a', 'list'], 42] # Sequence

    Methods to be used in this case start with a lowercase letter, such as take() or put(). Objects are serialized during exchanges, using the pickle module: this is all-purpose but slowest way.

  • Buffer-like objects: the global collection is a buffer, ie. a flat and homogeneous array (typically, a numpy array) of size \(c*n\) with \(c \in N^\star\) : each item of it is a group of \(c\) values. Of course, it is common to have \(c=1\), meaning that each item of the collection is a single value:

    #          0     1      2     3     4                   # Global Index
d = array([True, False, True, True, False], dtype=bool) # Buffer (c=1)

#          0    1    2      3      4                    # Global Index
d = array([3,5, 5,7, 11,13, 17,19, 29,31], dtype=int)   # Buffer (c=2)

    Methods to be used in this case start with an uppercase letter, such as Take() or Put().

  • Variable buffer objects: the global collection is still an homogeneous buffer, but the number of values may differ from each item; consequently, two arrays are needed:

    • a counting array of \(n\) integers, storing the number of data \(c_i\) for each item \(i\)

    • the buffer array of size \(\sum_i c_i\), storing the data values:

    #          0  1   2   3       4                       # Global Index
c =       [1, 1,  1,  2,      3         ]             # Counts
d = array([1, 11, 21, 12, 11, 11, 12, 21], dtype=int) # Buffer

    Methods to be used for such data start with an uppercase letter and finish with _v, such as Take_v() or Put_v().

Usage

Important

The instanciation of the global indexer, as well as all the take and put implementations, hide collective MPI communications. Deadlocks will occur if they are not called by all the processes of the provided communicator.

Initialization

The first step is to initialize the GlobalIndexer object by providing, in addition to the MPI communicator, two informations:

  • How the global collection is distributed: this is done through the distrib array, an integer array of size \(s+1\) (\(s\) beeing the number of processes) where distrib[j] and distrib[j+1] represents respectively the lower (included) and upper (excluded) bounds held by process \(j\). This data must be the same for all calling processes.

  • The list of global indices to access: this is done through the idx array, an integer array of size \(p_j\) where each index \(i\) satisfies \(0 \le i \lt n\). This data can be (and most of time, is) different on each calling process.

from mpi4py.MPI import COMM_WORLD as comm
from numpy      import array, empty
rank = comm.Get_rank()

# This example has been written for 3 processes
distri = array([0, 2, 4, 5])         # Global collection size is 5
if rank == 0:  idx = array([4, 0])   # P0 will access indices 4 and 0
if rank == 1:  idx = array([1, 3])   # P1 will access indices 3 and 1
if rank == 2:  idx = array([0])      # P2 will access index 0

GI = GlobalIndexer(distri, idx, comm)

The creation of the object will fail if any requested index outpasses the bounds of the distribution. All other configurations are managed, including the following cases:

  • a process can request access to no indices, by providing an empty integer array;

  • two processes can request access to the same index, and a given process can even request access to the same index more than once;

  • it is not mandatory to have all the indices of the collection to be accessed.

Exchanges

Note

The global indexer is a protocol object: once initialized, it allows to access multiple global arrays in the same specific manner. One of the main reason to use a global indexer in the first place is that we can construct the protocol (which is costly) only once, and then exchange data over multiple arrays by using it.

It is important to understand that thanks to the variable buffer mode, two distributed data of different kind can share the same distribution and access indices: all the below examples are illustrated for the same distribution and access indices.

Generic Python objects: to read or write generic Python object, one just have to store them in lists:

if rank == 0:  dist_data = [3.14, None]              #global indices 0..2
if rank == 1:  dist_data = ['chars', ['a', 'list']]  #global indices 2..4
if rank == 2:  dist_data = [42]                      #global indices 4..5

extr = GI.take(dist_data)
# P0 : extr = [42, 3.14]                          #requested indices [4,0]
# P1 : extr = [None, ['a', 'list']]               #requested indices [1,3]
# P2 : extr = [3.14]                              #requested indices [0]

if rank == 0:  data = [42, 3.14]                  #write at indices [4,0]
if rank == 1:  data = [None, ['A', 'LIST']]       #write at indices [1,3]
if rank == 2:  data = [.314]                      #write at indices [0]

dist_data = GI.put(data)
# P0 : dist_data = [.314, None]                      #global indices 0..2
# P1 : dist_data = [None, ['A', 'LIST']]             #global indices 2..4
# P2 : dist_data = [42]                              #global indices 4..5

There is nothing surprising for the take case. For the put case, notice that:

  • several processes provided data for global index 0 : the last one (with inscreasing ranks order) was kept;

  • no process provided data for global index 2 : the value None has been used.

The first rule is also the default behavious of buffers implementations; for the second rule, unreferenced indices will remain unitialized when using Put(), and will get a zero counts when using Put_v().

Buffer-like objects: for buffer object of constant size, we offer two alternatives: the output buffer can either be provided to the function by the user, as in mpi4py, or be allocated by the function as a numpy array if None value is used:

# Buffer of ints, with 2 values per index (c=2)
if rank == 0:  dist_data = array([3,5,5,7],     dtype=int)  #glob idx 0..2
if rank == 1:  dist_data = array([11,13,17,19], dtype=int)  #glob idx 2..4
if rank == 2:  dist_data = array([29,31],       dtype=int)  #glob idx 4..5

extr = GI.Take(dist_data, None, count=2)
# We extract 2 values per requested index
# P0 : extr = array([29,31,3,5], dtype=int)   #requested indices [4,0]
# P1 : extr = array([5,7,17,19], dtype=int)   #requested indices [1,3]
# P2 : extr = array([3,5],       dtype=int)   #requested indices [0]

dn = distri[rank+1] - distri[rank]
dist_data_new = zeros(2*dn, dtype=int) # To track unitialized values
if rank == 2: # To illustrate write priority
  extr *= -1  # Now P2 has extr = array([-3,-5], dtype=int)

GI.Put(extr, dist_data_new, count=2)
# P0 : dist_data_new = array([-3,-5,5,7],   dtype=int)      #glob idx 0..2
# P1 : dist_data_new = array([0,0,17,19],   dtype=int)      #glob idx 2..4
# P2 : dist_data_new = array([29,31],       dtype=int)      #glob idx 4..5

Note that as explained above, data at position 2 in dist_data_new kept its original value, since no process provided data for this index. On the other side, the value written at position 0 is the one coming from rank 2, since this is the last encountered.

An alternative is to use one of the available reduction function to accumulate the data coming from the different processes:

GI.Put(extr, dist_data_new, count=2, reduce=ReduceOp.MAX)
# P0 : dist_data_new = array([3,5,5,7],     dtype=int)      #glob idx 0..2
# P1 : dist_data_new = array([0,0,17,19],   dtype=int)      #glob idx 2..4
# P2 : dist_data_new = array([29,31],       dtype=int)      #glob idx 4..5

In this case, the size of the output data remains the same, but the reduction function is applied to the data written at the same index to compute the result.

Note

  • The reduction also include the initial value of the output array. In preallocated mode, it is the user’s responsibility to choose this initial value. In allocating mode, we use the neutral element of the requested operation.

  • If \(c \neq 1\), the reduction is applied to each item independently.

Variable buffer objects: when it’s come to variable buffer, an additional array of counts has to be used. For now, this array has to be a numpy array of integers, while the data buffer can be a numpy array of any datatype. This is the most complex implementation, but it allows to work with sparse data since a count of 0 is allowed for any global index.

Following what is done in the previous paragraph, the output variable buffer is allocated by the function as a pair of numpy array if None argument is used, or can be provided to the function by the user. In this case, indices that are not accessed by any process keep their initial values.

Here is an exemple of the take implementation for a variable buffer:

# Variable buffer of ints, with number of values described by counts array
if rank == 0:
  counts    = array([1,1])                 #nb of values for glob idx 0..2
  dist_data = array([1,11],     dtype=int) #values (1, then 1)
if rank == 1:
  counts    = array([1,2])                 #nb of values for glob idx 2..4
  dist_data = array([21,12,11], dtype=int) #values (1, then 2)
if rank == 2:
  counts    = array([3])                   #nb of values for glob idx 4..5
  dist_data = array([11,12,21], dtype=int) #values (3)

counts_o, extr = GI.Take_v((counts, dist_data))
# P0 : counts_o = array([3,1])                   #nb of vals got for [4,0]
#      extr     = array([11,12,21,1], dtype=int) #values (3, then 1)
# P1 : counts_o = array([1,2])                   #nb of vals got for [1,3]
#      extr     = array([11,12,11], dtype=int)   #values (1, then 2)
# P2 : counts_o = array([1])                     #nb of vals got for [0]
#      extr     = array([1], dtype=int)          #values (1)

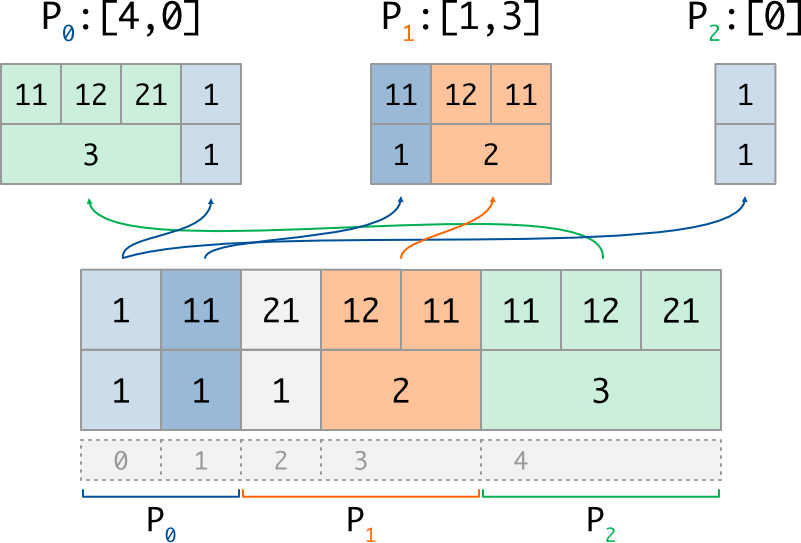

which can be illustrated as follow:

../../_images/take_v.png

And here is an exemple of the put implementation for a variable buffer:

if rank == 0:
  counts = array([1,3])                       #nb of vals to write at [4,0]
  values = array([4.1,0.1,0.2,0.3],dtype='f') #values (1, then 3)
if rank == 1:
  counts = array([0,1])                       #nb of vals to write at [1,3]
  values = array([13.1],           dtype='f') #values (0, then 1)
if rank == 2:
  counts = array([2])                         #nb of vals to write at [0]
  values = array([20.1,20.2],      dtype='f') #values (2)

counts_new, dist_data_new = GI.Put_v((counts, values))
# P0 : counts_new    = array([2,0])                  #nb of vals for 0..2
#      dist_data_new = array([20.1,20.2], dtype='f') #values (2, then 0)
# P1 : counts_new    = array([0,1])                  #nb of vals for 2..4
#      dist_data_new = array([13.1],      dtype='f') #values (0, then 1)
# P2 : counts_new    = array([1])                    #nb of vals for 4..5
#      dist_data_new = array([4.1],       dtype='f') #values (1)

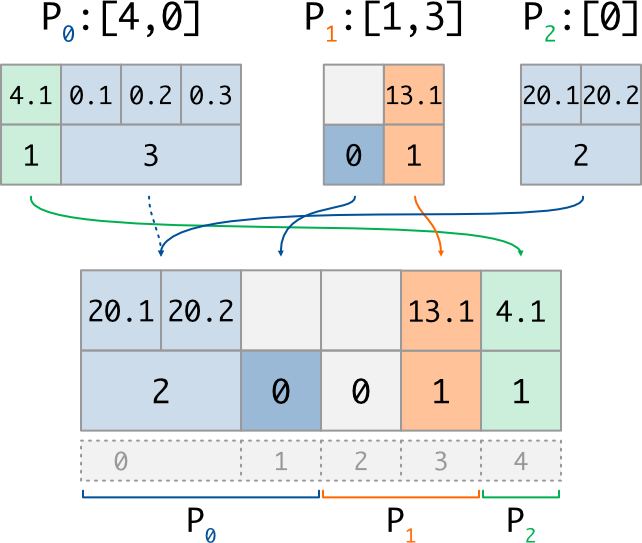

with its corresponding illustration (note that 0-length data does not really exist in memory):

../../_images/put_v.png

We can check that, in each case, the size of the counting array is equal to the number of described data (ie the length of the distributed section, or the length of the requested indices list), and that the size of the data buffer is equal to the sum of the associated counting array.

Note than unaccessed indices (such as index 2) automatically get a 0 count after the Put_v operation: on the other side, index 1 get a 0 count because it was explicitly put by P1. Once again, one can observe the resolution of writting conflicts: for global index 0, which is accessed twice, the written data (and thus its counts value) come from the process having the highest rank (P2). This is why we used a dashed arrow for P0 on the scheme: its value is not written in the distributed array, because of priority order.

This rule can be disabled with the parameter extend=True: when used, all the data written at a same global index are concatenated according to their apparition order (in increasing rank order):

counts_new, dist_data_new = GI.Put_v((counts, values), extend=True)
#P0 : counts_new    = array([5,0])                   #nb of vals for 0..2
#     dist_data_new = array([0.1,0.2,0.3,20.1,20.2]) #values (5, then 0)
#P1 : counts_new    = array([0,1])                   #nb of vals for 2..4
#     dist_data_new = array([30.1],                ) #values (0, then 1)
#P2 : counts_new    = array([1])                     #nb of vals for 4..5
#     dist_data_new = array([4.1],                 ) #values (1)

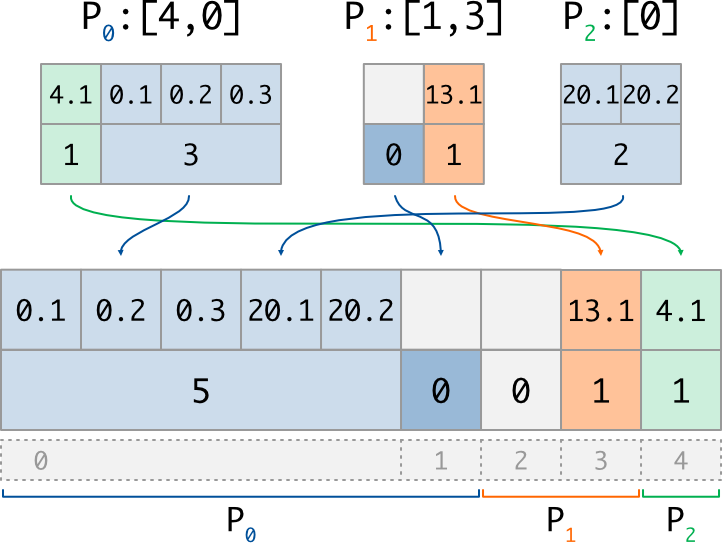

On the above example, we can see that with extend=True, global index 0 get a counts of 5 because 3 values has been written by P0, then 2 values by P2.

../../_images/put_v_ext.png

Note

  • The concatenation also include the initial values of the output variable array, which allows the users to update existing data. If no output array is provided, as in the above example, we simply use internally an empty (counts == 0) initial array.

API reference

class GlobalIndexer

A protocol object allowing to access distributed data in read or write mode.

The documentation uses the following notations:

  • \(s\) : number of processes (equal to comm.Get_size())

  • \(n\) : global size of the distributed collection (equal to distri[s+1])

  • \(dn\) : for each rank \(j\), size of its section of the collection (equal to distri[j+1]-distri[j])

  • \(pn\) : for each rank \(j\), number of accessed indices (equal to len(g_idx))

  • \(c\) : for constant buffer access, number of data per item of the collection

__init__(distri, g_idx, comm)

Create a GlobalIndexer protocol object

The protocol object is described by two arrays of integer, satisfying these rules:

  • distri (size \(s+1\)):

    • same value on all processes;

    • distri[0] == 0, distri[s] == n, and distri[j] <= distri[j+1] for all j.

  • g_idx (size \(pn\)):

    • different size and value on each process;

    • values in range \([0, n-1]\).

Parameters

  • distri (integer array of size \(s+1\)) – distribution of the collection

  • g_idx (integer array of size \(pn\)) – accessed global indices

  • comm (MPIComm) – communicator

take(dist_data, local_data=None, /)

take implementation for generic Python objects

Exchanged data are serialized using pickle module, which has a negative impact on performances; if data is a buffer object, it is strongly advised to use Take() method instead.

Parameters

  • dist_data (list of size \(dn\)) – section of the distributed data

  • local_data (list of size \(pn\), optional) – preallocated list to store extracted values or None

Returns

list of size \(pn\) – values extracted at the requested indices. The return object is local_data if it was given by the user.

put(local_data, dist_data=None, /)

put implementation for generic Python objects

Exchanged data are serialized using pickle module, which has a negative impact on performances; if data is a buffer object, it is strongly advised to use Put() method instead.

Note that:

  • if a global index appears more than once in the idx lists, the associated data in the output buffer will be the last appearing (in increasing processes order)

  • if a global index does not appears in any idx list, its associated data in the output buffer will be:

    • the user provided value if dist_data is provided;

    • None otherwise.

Parameters

  • local_data (list of size \(pn\)) – data to write at each accessed index

  • dist_data (list of size \(dn\), optional) – preallocated list to store distributed data or None

Returns

list of size \(dn\) – output distributed data. The return object is dist_data if it was given by the user.

Take(dist_data, local_data=None, /, count=1)

take implementation for buffer-like objects

Input buffer must be of size \(c*dn\), where \(c\) is a positive integer. The value of \(c\) and the datatype <T> of the input buffer must be the same across all the processes.

The output buffer is either:

  • provided by the caller as a buffer of size \(c*pn\) and of datatype <T>,

  • or automatically allocated by the method as a new numpy array if local_data=None.

Parameters

  • dist_data (buffer of size \(c*dn\)) – section of the distributed data

  • local_data (buffer of size \(c*pn\), optional) – preallocated buffer to store extracted values or None

  • count (int) – scalar value of \(c\). Defaults to 1.

Returns

buffer of size \(c*pn\) – values extracted at the requested indices. The return object is local_data if it was given by the user.

Put(local_data, dist_data=None, /, count=1, *, reduce=None)

put implementation for buffer-like objects

Input buffer must be of size \(c*pn\), where \(c\) is a positive integer. The value of \(c\) and the datatype <T> of the input buffer must be the same across all the processes.

The output buffer is either:

  • provided by the caller as a buffer of size \(c*dn\) and of datatype <T>,

  • or automatically allocated by the method as a new numpy array if dist_data=None.

Note that:

  • if a global index appears more than once in the idx lists, the associated data in the output buffer will be

    • the last appearing (in increasing processes order) if reduce=None;

    • the result of the reduction function, applied to the input candidates otherwise.

  • if a global index does not appears in any idx list, its associated data in the output buffer will be

    • the user provided value if dist_data is preallocated;

    • an uninitialized value if reduce=None and if dist_data is not preallocated;

    • the neutral element of the reduction function otherwise.

Parameters

  • local_data (buffer of size \(c*pn\)) – data to write at each accessed index

  • dist_data (buffer of size \(c*dn\), optional) – preallocated buffer to store distributed data or None

  • count (int) – scalar value of \(c\). Defaults to 1.

  • reduce (ReduceOp, optional) – Binary operation applied to the data written at the same global index. Defaults to None.

Returns

buffer of size \(c*dn\) – output distributed data. The return object is dist_data if it was given by the user.

Take_v(dist_data, local_data=None, /)

take implementation for variable buffer-like objects

The input variable buffer is described by a tuple of two objects:

  1. an integer array dist_counts of size \(dn\);

  2. a buffer object of size dist_counts.sum(). The datatype <T> of this input buffer must be the same across all the processes.

Similarly, the output variable buffer is described by the tuple of two objects:

  1. an integer array local_counts of size \(pn\);

  2. a buffer object local_buff of size local_count.sum() and datatype <T>.

This output data is either:

  • provided by the caller, in which case local_counts must be already filled, eg. with Take(dist_counts, local_counts), and local_buff must be prellocated at relevant size and datatype;

  • or automatically allocated by the method as a pair of new numpy array if local_data=None.

Parameters

  • dist_data (variable buffer) – section of the distributed data, ie pair of values (dist_counts (np array of \(dn\) int), dist_buff (buffer))

  • local_data (variable buffer, optional) – preallocated buffer to store extracted values or None

Returns

variable buffer – data extracted at the requested indices, as a tuple of values (local_counts (np array of \(pn\) int), local_buff (buffer)). The return object is local_data if it was given by the user.

Put_v(local_data, dist_data=None, /, *, extend=False)

put implementation for variable buffer-like objects

The variable input buffer is described by a tuple of two objects:

  1. an integer array local_counts of size \(pn\);

  2. a buffer object of size local_counts.sum(). The datatype <T> of this input buffer must be the same across all the processes.

Similarly, the output variable buffer is described by the tuple of two objects:

  1. an integer array dist_counts of size \(dn\);

  2. a buffer object dist_buff of size dist_counts.sum() and datatype <T>.

This output data is either:

  • initialized by the caller,

  • or automatically allocated by the method as a pair of new numpy array if dist_data=None.

Note that:

  • if a global index appears more than once in the idx lists, the associated data in the output variable buffer will be

    • the last appearing (in increasing processes order) if extend=False;

    • the concatenation of all input candidates (including initial value if provided) otherwise.

  • if a global index does not appears in any idx list, its associated data in the output variable buffer will be

    • the user provided value if dist_data is not None;

    • an empty subset of values (counts=0) otherwise.

Parameters

  • local_data (variable buffer) – data to write at each accessed index, ie tuple (local_counts (np array of \(pn\) int), local_buff (buffer))

  • dist_data (variable buffer, optional) – initial output buffer to store distributed data or None

  • extend (bool, optional) – If True, gather the values written at a same global index. Otherwise, keep only the last one. Defaults to False.

Returns

variable buffer – output distributed data, returned as the tuple of values (dist_counts (np array of \(dn\) int), dist_buff (buffer)).

property access_counts

For each global index, total number of apparitions in the g_idx arrays, returned as an integer array of size \(dn\).

class GlobalMultiIndexer

This is a generalization of GlobalIndexer where each process can request access to several lists of global indices.

We thus need to introduce the additional notations, which are local for each rank:

  • \(N\) number of global indices list provided (equal to len(g_idx_l))

  • \(pn_k\): for each index list \(k\), number of accessed indices (equal to len(g_idx_l[k]))

All the methods described in GlobalIndexer are available, but the arguments related to the accessed indices (ie the output of take methods, and the input of put methods) are now lists of size \(N\).

Note that in particular, a given process can set \(N=0\); in this case, empty lists should be used whenever a list is expected.

__init__(distri, g_idx_l, comm)

Generalization of GlobalIndexer.__init__() for multi index access.

Parameters

  • distri (integer array of size \(s+1\)) – distribution of the collection

  • g_idx_l (N integer arrays of size \(pn_k\)) – accessed global indices

  • comm (MPIComm) – communicator

take(dist_data, local_data_l=None, /)

Generalization of GlobalIndexer.take() for multi index access.

Parameters

  • dist_data (list of size \(dn\)) – section of the distributed data

  • local_data_l (\(N\) list of size \(pn_k\), optional) – preallocated lists to store extracted values corresponding to each index list, or None.

Returns

\(N\) list of size \(pn_k\) – for each index list, values extracted at the requested indices

put(local_data_l, dist_data=None, /)

Generalization of GlobalIndexer.put() for multi index access.

Parameters

  • local_data_l (\(N\) list of size \(pn_k\)) – for each index list, data to write at each accessed index

  • dist_data (list of size \(dn\), optional) – preallocated list to store distributed data or None

Returns

list of size \(dn\) – output distributed data

Take(dist_data, local_data_l=None, /, count=1)

Generalization of GlobalIndexer.Take() for multi index access.

Parameters

  • dist_data (buffer of size \(c*dn\)) – section of the distributed data

  • local_data_l (list of \(N\) buffer, optional) – preallocated buffers to store extracted values corresponding to each index list, or None

  • count (int) – scalar value of \(c\). Defaults to 1.

Returns

\(N\) buffer of size \(c*pn_k\) – for each index list, values extracted at the requested indices

Put(local_data_l, dist_data=None, /, count=1, *, reduce=None)

Generalization of GlobalIndexer.Put() for multi index access.

Parameters

  • local_data_l (\(N\) buffer of size \(c*pn_k\)) – for each index list, data to write at each accessed index

  • dist_data (buffer, optional) – preallocated buffer to store distributed data or None

  • count (int) – scalar value of \(c\). Defaults to 1.

  • reduce (ReduceOp, optional) – Binary operation applied to the data written at the same global index. Defaults to None.

Returns

buffer of size \(c*dn\) – output distributed data

Take_v(dist_data, local_data_l=None, /)

Generalization of GlobalIndexer.Take_v() for multi index access.

Parameters

  • dist_data (variable buffer) – section of the distributed data, ie pair of values (dist_counts (np array of \(dn\) int), dist_buff (buffer))

  • local_data_l (list of N variable buffer, optional) – list of preallocated buffer to store extracted values or None

Returns

list of N variable buffer – for each index list, data extracted as tuple of values (local_counts (np array of \(pn_k\) int), local_buff (buffer))

Put_v(local_data_l, dist_data=None, /, *, extend=False)

Generalization of GlobalIndexer.Put_v() for multi index access.

Parameters

  • local_data_l (list of N var. buffer) – for each index list, values to write as pair (local_counts (np array of \(pn_k\) int), local_buff (buffer))

  • dist_data (variable buffer, optional) – preallocated buffer to store distributed data or None

  • extend (bool, optional) – If True, gather the values written at a same global index. Otherwise, keep only the last one. Defaults to False.

Returns

variable buffer – output distributed data, returned as pair of values (dist_counts (np array of \(dn\) int), dist_buff (buffer))

property access_counts

For each global index, total number of apparitions in the g_idx arrays, returned as an integer array of size \(dn\).

ReduceOp : Enum class

Enumeration storing the available operations. Members are SUM, PROD, MIN, MAX, LAND, LOR, BAND and BOR, where ‘L’ stands for logical operations and ‘B’ for bitwise operations.
